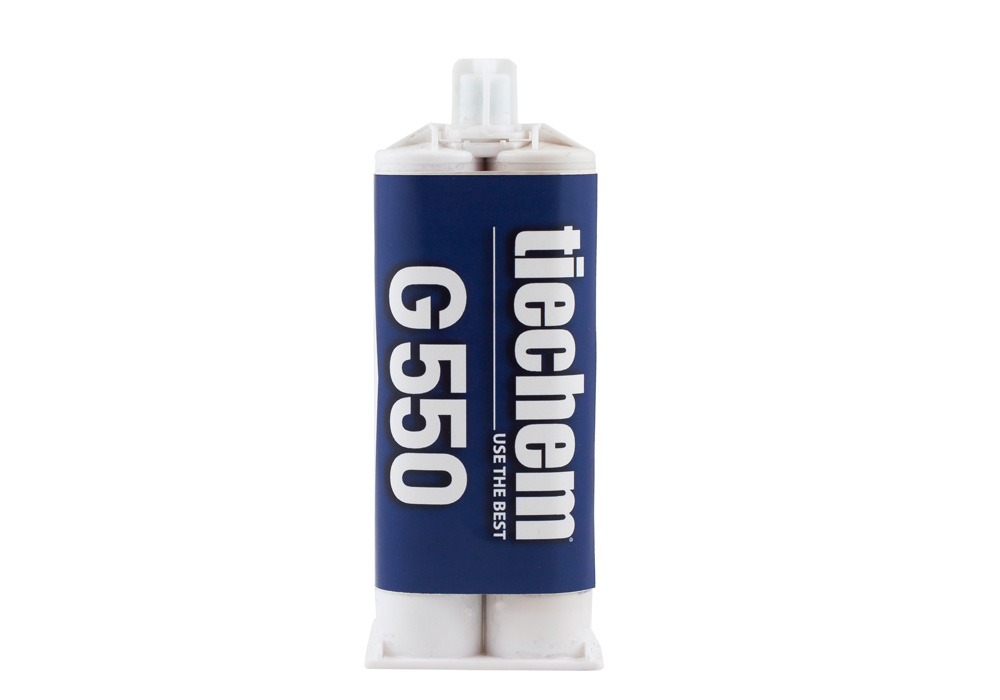

Tiechem G550

DUAL COMPONENT ADHESIVE

Tiechem G550 is Methyl Methacrylate (MMA) based high performance structural adhesive.

Application Areas:


2-part fast curing Glass, Acrylic, Plastics (PVC, ABC, Kestamit), Composites, Wood, Aluminium, Stainless Steel, all metal and wood bonding.

Application:


First of all, application surface cleaned from burrs, oil, liquids and etc. Also application surface should be dry. Components mixture are applied in same ratio of amount as 1/1. Advised to use cartridge gun with mixer nozzle or automatic dispensary.

Drying:


Drying time take longer than expected below 20°C. Drying time can be shorter with increasing temperature (temperature should be between 45°C-55°C). Curing time is 3-5minutes. After an hour it shows 75% holding performance. Full performance and tests can be applied after 24 hours.

Properties:

  • High impact resistance and excellent shear strength
  • Resistant against outdoor conditions and humidity
  • Suitable for bonding a wide range of materials
  • Fast, flexible, versatile
  • Universal use and simple handling
  • High strength and stability
  • Cures at room temperature
  • Short curing times
  • It does not contain solvents
  • For bonds with gap sizes 3mm
  • Colour: Light yellow & Transparent yellow
  • Viscosity: 20,000 – 30,000 cps
  • Specific gravity 1.02 g/m3
  • Temp. Range -40°C to +150°C
  • Handling strength 8-10 minutes
  • Working strength 30-60 minutes
  • Full strength 24 hours

Size of packages:

  • 50ml cartridge
  • 5kg container
